Home > Internal Driven Piezo Buzzer
Lead wire type

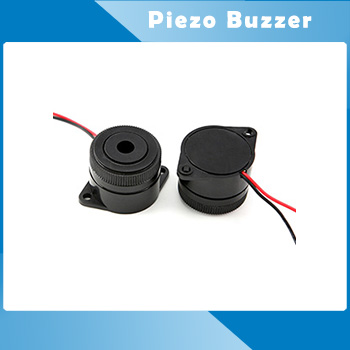

Internal Driven Piezo Buzzer (With oscillator circuit)
Dia 30 x25mm Worked with 100~120V AC , Output3.7K Hz 90dB at 10cm.
This Piezo Audio Indicator applied to Home appliance for alarm
Type
UNIT
HP3025AXW110AC
*Min. Sound Output at 30cm
dB
90
Rated Voltage
VAC
110
Operating Voltage
VAC
100~120
Resonant Frequency
Hz
3700±500
*Max. Current Consumption
mA
20MA/110V AC
Tone Nature
Continuous
Operating Temperature
°C
-20～+70
Storage Temperature
°C
-30～+80
Weight
g
13
Value applying at rated voltage
DIMENSIONS Unit:mm Tolerance:±0.5
