  • HE-1268  220V DC Mechanical Buzzer

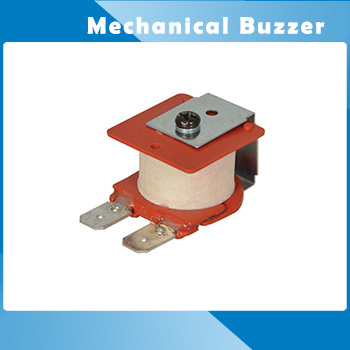

HE-1268  220V DC Mechanical Buzzer

HE-1268 220V DC Mechanical Buzzer

  • Product description: HE-1268 220V DC Electromechanical Buzzer ,Pin terminal type, Worked with 220V DC,Output 78dB . Main apply for industrial alarm .
  • INQUIRY

HE-1268  220V DC Electromechanical Buzzer

Buzzer Datasheet:
Pin termina  Type, 23x 23x 17mm  Worked with 220V DC,Output 78dB at 10cm


TYPE

UNIT

HE-1268

Min.Sound Output at20cm

       dB

78

Rated Voltage

VDC

220

Operating Voltage

VDC

180260

Max. Current Consumption

mA

30

Coil Resistance

Ω

4000±10%

Operating Temperature

-25+75

Storage Temperature

-25+85

Weight

g

20

Value applying at rated voltage

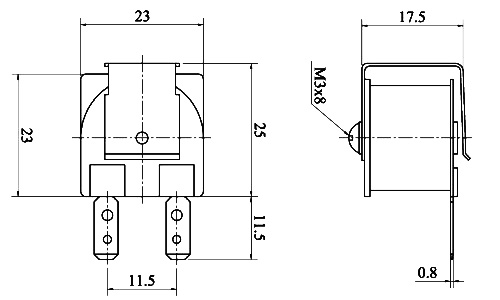

DIMENSIONS     Unit:mm     Tolerance:±0.5
